This is everything that you would need, to equip your GX460 with our JW Offroad 3.5" Spare Tire Carrier with the Center Plate Camera relocation mount. This kit includes the following:

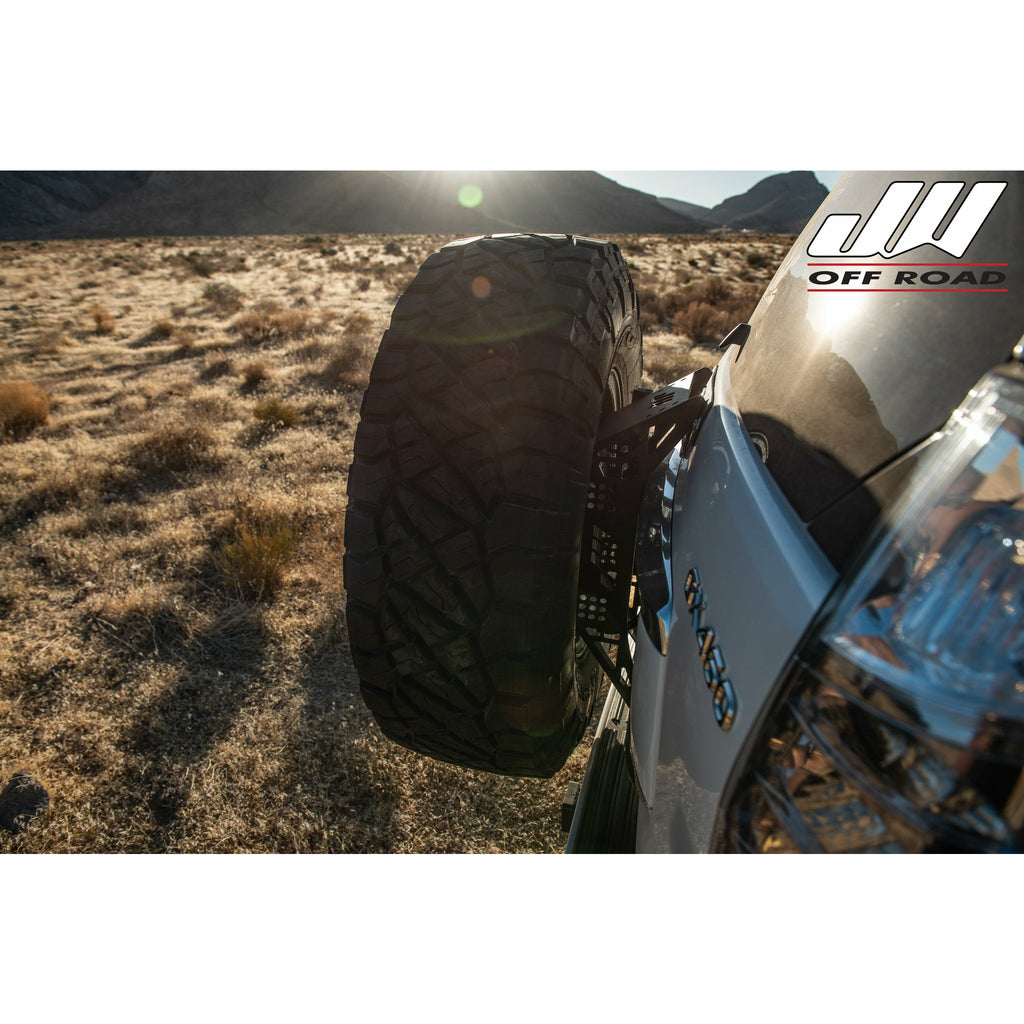

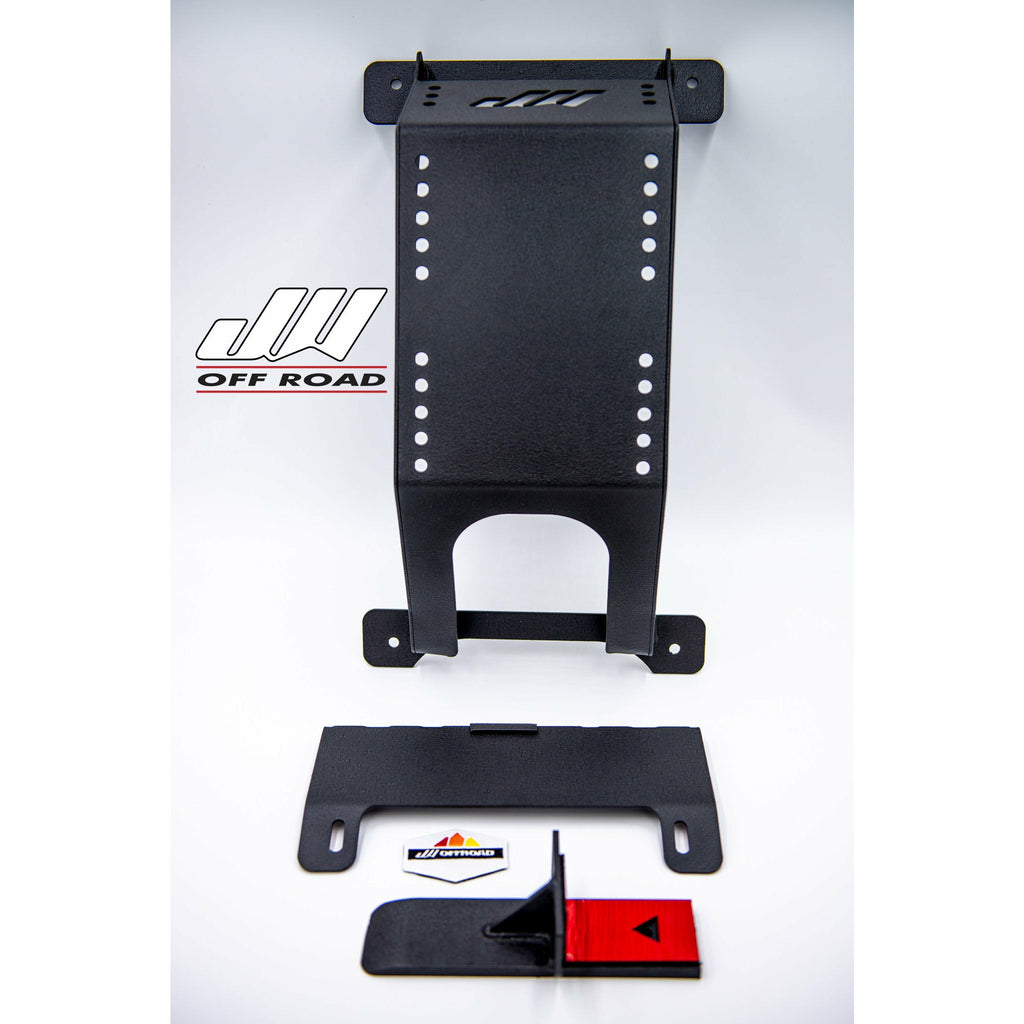

GX Spare tire carrier with 3.5" Neck
- This version allows you to open the rear window and still have easy access to the latch to open the door.
- 1/8th" steel CNC laser cut
- comes with 3/8th steel cross member brace "loading dock"
- (2) 1/8th inch thick backing plates for the interior of the door.
- Inner door skin support brackets

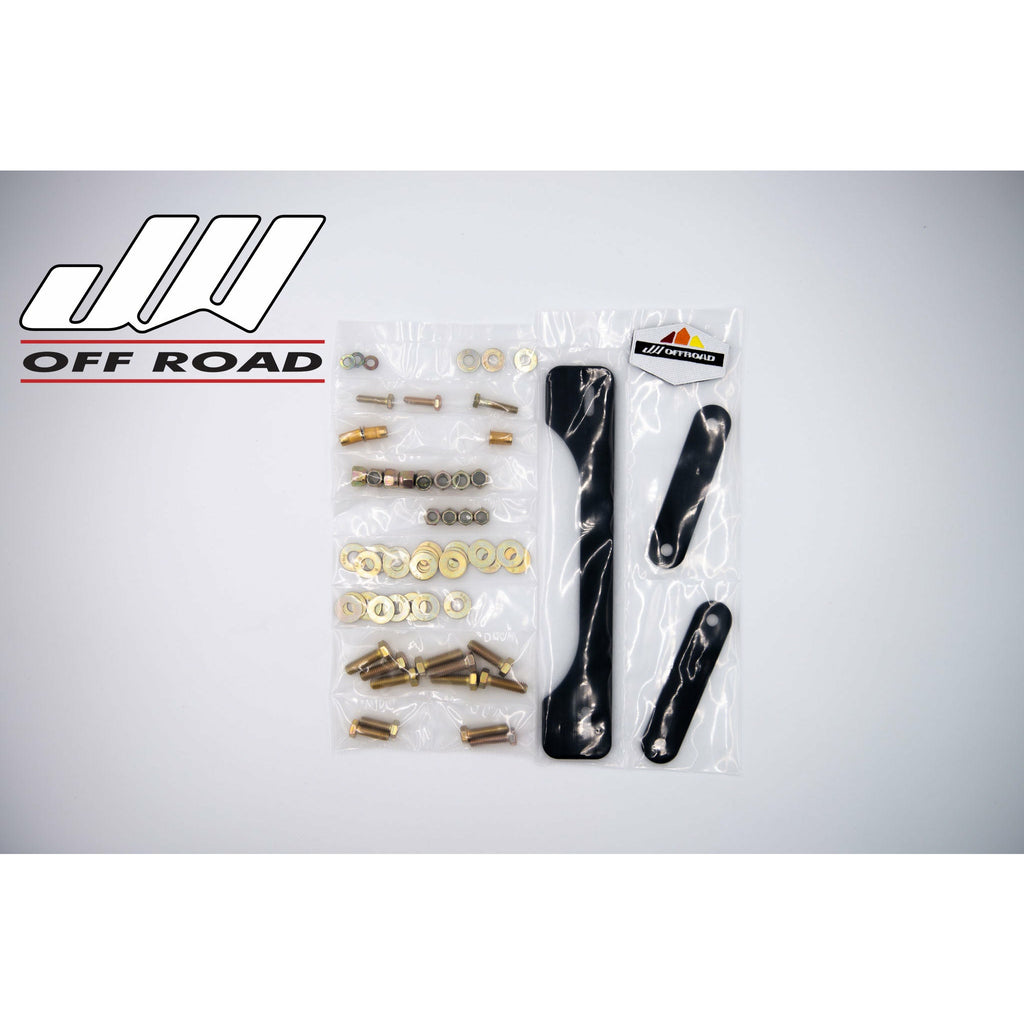

- grade 8 hardware kit

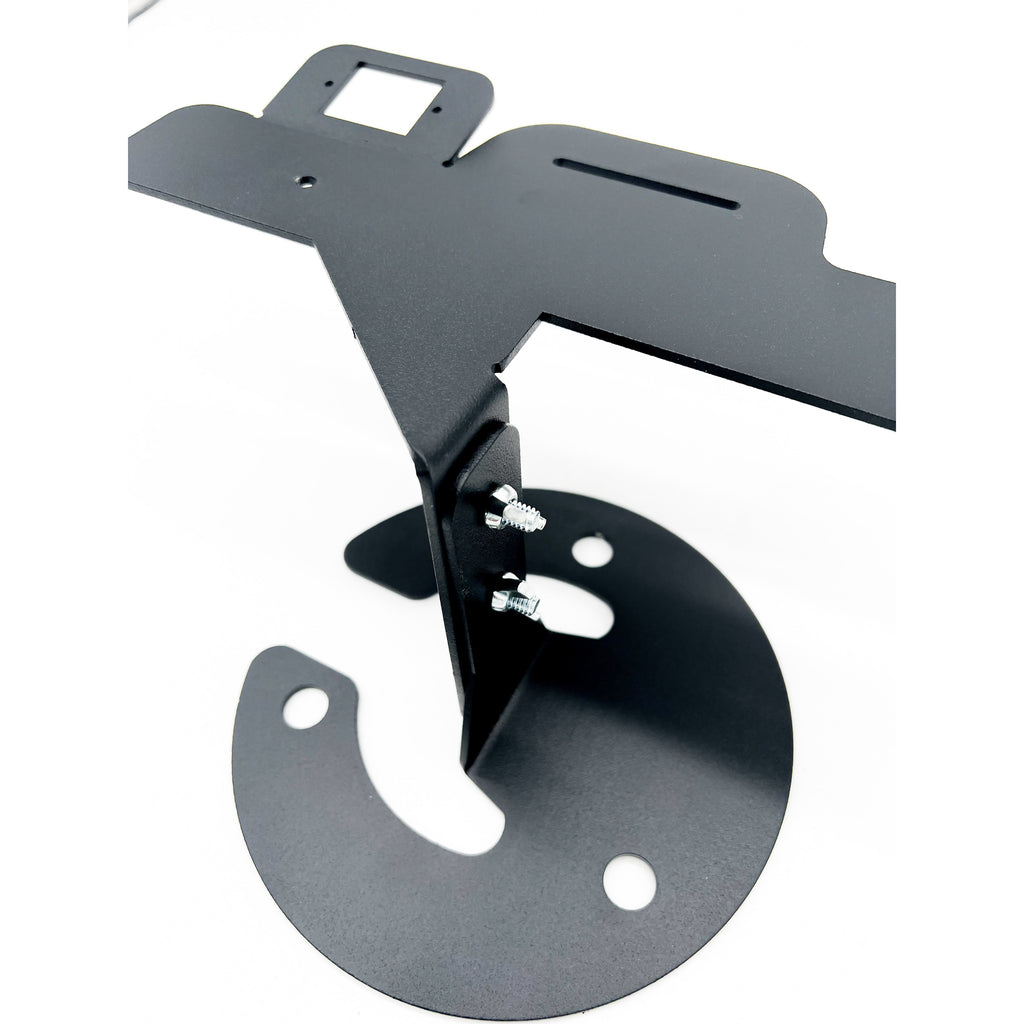

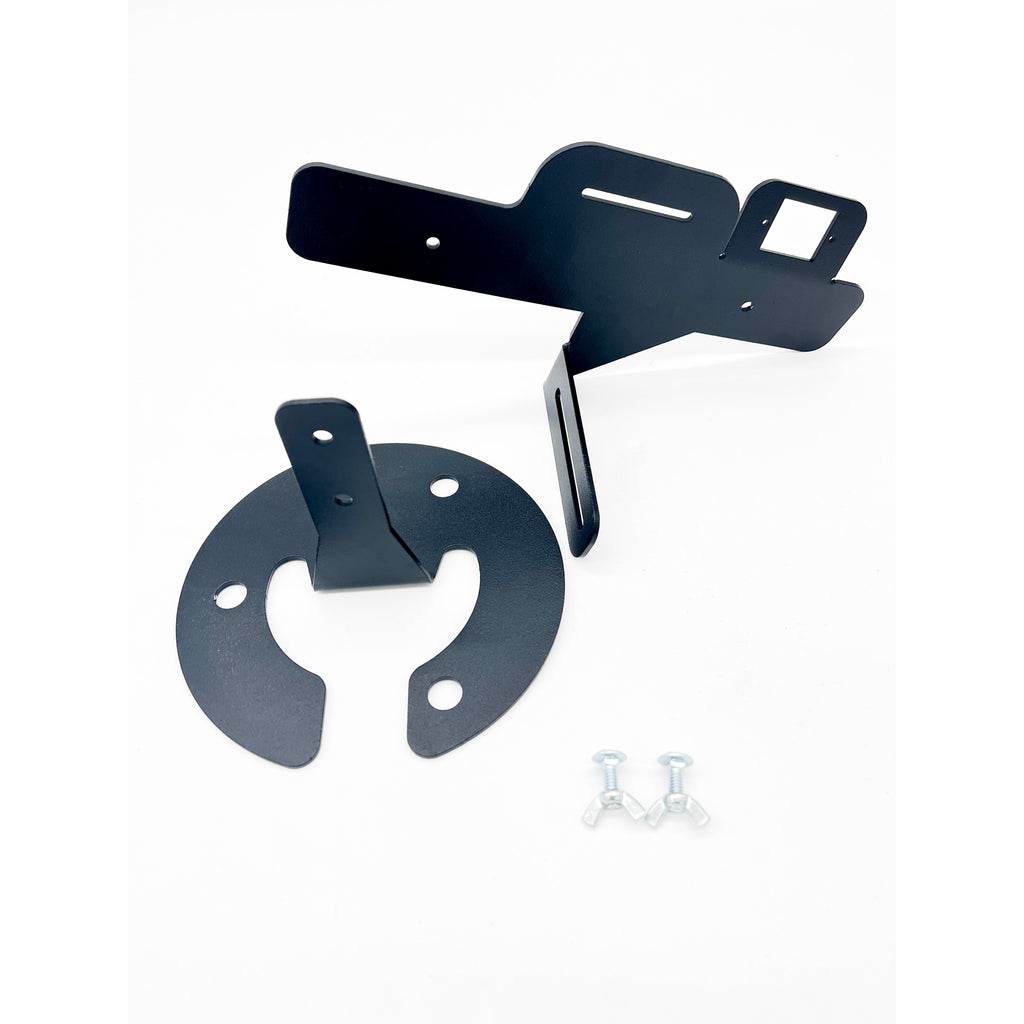

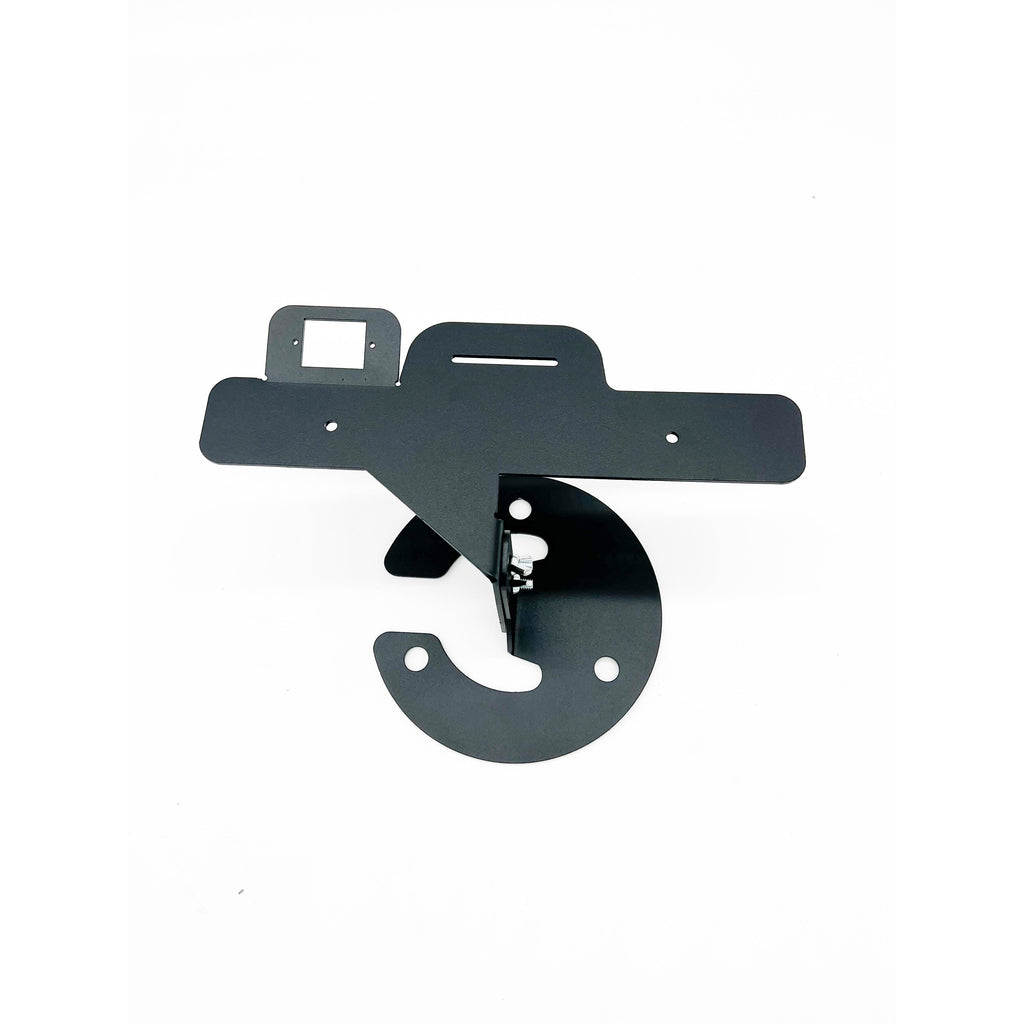

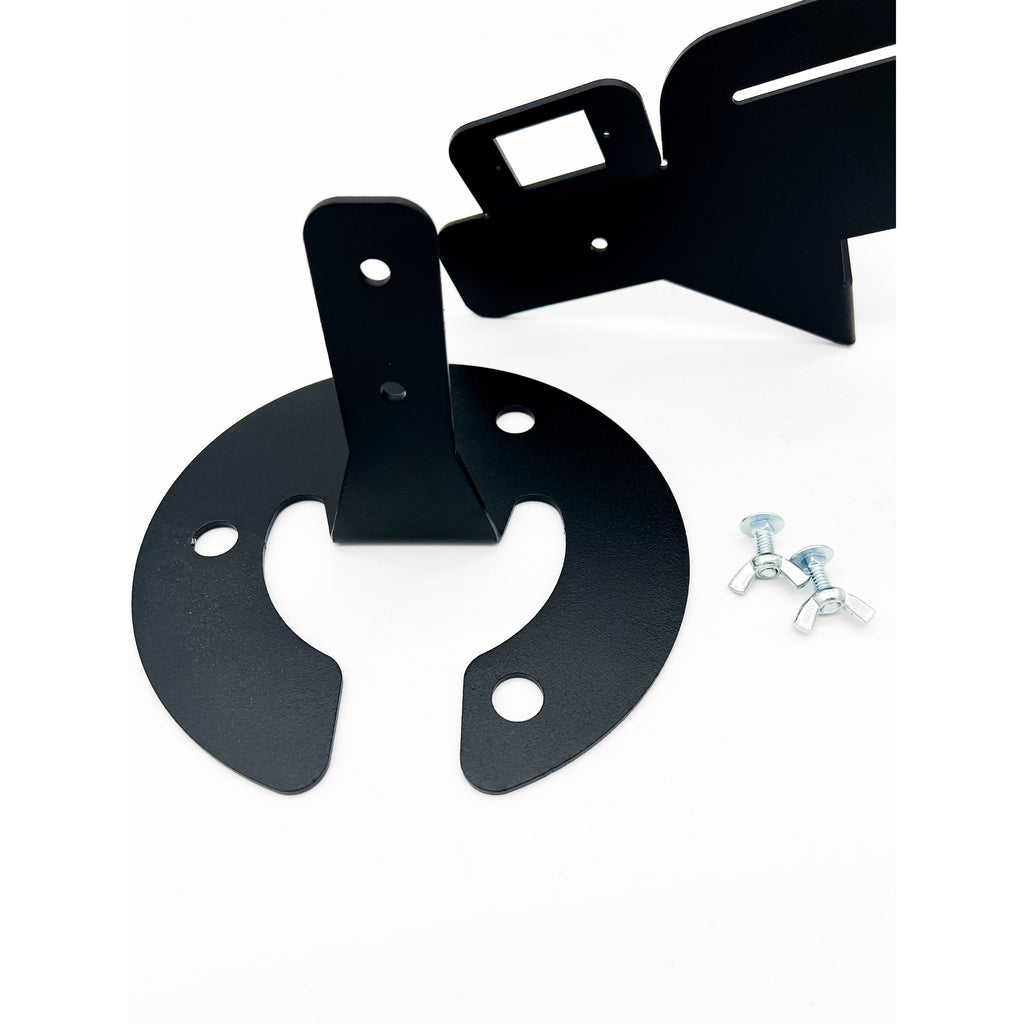

Center License Plate Mount
- This added plate will slide through studs and sit completely flushed. We design this to steel constructed, light weight, and most important No Wobble!
- This mount will accept the Stock OEM camera, Baja rock light or any rock light for reverse light Sold separately.
- includes steel 5/16 thumb screw
Male / Female Waterproof Connectors (Relocate Camera + Led Lamp Harness's) PLUG ONLY
- If you plan on running our Center License Plate Mount with LED Lamp you would need these to relocate your camera and plate light and also extend the existing harness to allow you to make the Quick Disconnect for both accessories when removing your Spare wheel.
- Waterproof Quick Connectors
1x 4 pin Male and Female connectors needed for Back Up Camera.
1x 2 pin Male and Female connectors needed for LED Plate Lamp.
PLUGS ONLY- WILL STILL NEED TO EXTEND THE WIRES WITH 18G WIRE
INCLUDES NEW INNER SUPPORT BRACKETS
These are made to order, and at times requires us to order material to start fabrication and because of that there will be a 25% restock / cancellation fee if cancelling or returning your order.
WE ARE ON A 8 WEEK LEAD TIME FOR POWDERCOATED ORDERS
2-3 WEEKS FOR RAW ORDERS
